Integrated Load, Slew and Height control in a Rated Capacity Indicator.

Series Two

Introducing Series 2

The Series 2 range of safety control products provide integrated solutions for height, slew and load control. Providing a more sophisticated level of control for the operator and greater flexibility for increasingly complex worksites. Series 2 products are compatible with a range for boom configurations, including four-piece, variable-angle and long reach excavators.

Using a consistent, intuitive graphical display the user is provided with information that drives productivity by maximising the machines safe working range. Aimed at construction and infrastructure projects these versatile product range includes the markets first telehandler height control system.

Supporting safety in a range of industries.

Sectors

Why choose Series-2?

Key Features

  • Quick start-up time of five seconds.
  • Pre-defined or operator set limits by moving machine within safe working envelope.
  • Pre-emptive stopping to avoid machine bounce, overshoot and undershoot.
  • Intelligent control ensures machine can be returned to safe working zone.
  • Multi-point virtual wall capability for restriction on any site.
  • Easy (push button) lifting duty selection, with ten zones within the slew rotation.
  • Optional key switch controls enable supervisor limit setting and system isolation.
  • All actions are logged to support training, best practise review and near-miss or accident reporting.

Series 2-TH

 Self-installation height limiting for Telehandler.

A simple, accurate, cost effective height limiting system, suitable for self-installation and designed specifically for tele handlers. The Series 2-TH height limiter is designed to protect workers from overhead danger when operating in restricted conditions.

Suitable for use on

Series 2-HS

Intelligent height and slew limiting designed for the construction industry.

Designed for use on construction sites, where machines, including tracked and wheeled excavators are operating in confined height or restricted areas.

Offering the ability to monitor and control height, or slew, or a combination of both Height and Slew in real-time. The programming of height and slew limits is easily carried out using the integrated display with soft button controls.

The system notifies the machine operator when approaching and breaching a set limit and an external audio alarm is activated when reaching the limit. An optional intelligent motion-cut prevents infringements and allows only safe movement.

Suitable for use on

Series 2-LHS

A Fully compliant and highly flexible height slew and load safety control system.

Engineered to meet the increasing compliance requirements for human and machine safety and protection and to satisfy regulation regarding use of excavators as a crane. These highly flexible systems are suitable for installation to a wide variety of equipment, including tracked or wheeled excavators, single or two-piece boom configurations.

In addition to the rated capacity indicator functions the Series 2-LHS provides added benefits to the user, with digging depth indication, which helps to reduce over-digging of the trenches or can assist in the placement of lifted items. Height limiting also allows the operator to operate in restricted headroom areas.

Suitable for use on

Series 2-LHS+

A highly flexible height slew and load safety control system with full envelope control.

The Series 2-LHS+ increases safety during lifting operations and is highly adaptable working on a variety of machines including wheeled and tracked excavators whatever their boom configuration.

A flexible safety system which in its basic form is a simple load indicator – but can easily be configured to incorporate height and slew monitoring. The Series-2LHS+ is also available with intelligent motion cut facilities to control the safe movement of height, slew and or load.

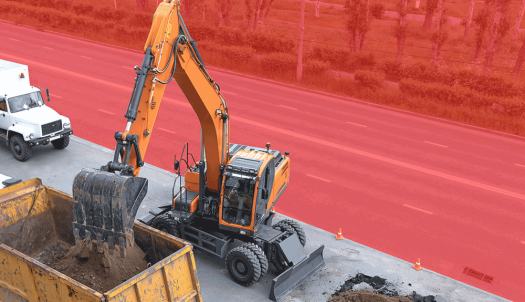

For Highway construction, this latest version offers the option of a ‘Virtual Wall’ function is available. The virtual wall or envelope control function can be programmed to the safe parameters of the machine’s required working area, working in conjunction with the slew and height control – this prevents the excavators boom operating outside its safe-zone. This function increases the usability of the machine and allows for optimization of the ‘working area’. Should the machine approach its pre-set limit an external audible alarm will warn the operator. The optional intelligent motion-cut, if installed, will stop the machine and only allow safe movement.

Suitable for use on

Downloads

Need more information?

You can download sales information here, if you need user manuals head to Resources.
